A rare sonic element with alternate refinement — meet the new Unobtanium RAW edition!

The main composition has stayed the same as the standard version of the pedal: A recreation of the K-style overdrive true to the last detail finds its place at the right section of the pedal while the left section features two D-style amplifier voicing, the most unobtainable tube amplifiers in the world.

For the RAW edition, we have added a couple of magic ingredients to the clipping section of the K side: a set of hand selected New Old Stock Mullard/Valvo labelled OC45 germanium transistors from the 60s.

This is the first K-type circuit to feature germanium transistors! We have tried many germanium transistor types and found that the OC45 transistors added a supernatural feel with organic compression for increased gain and sustain. Fear not — the standard sounds are still there in the stock setting where you listen to germanium diodes clipping like the original unit.

The amp-in-a-box side of the RAW version is glassier and punchier than the standard version. Think of singing blues rock and classic rock sounds that cut through the mix, flawlessly performing with all kinds of different guitars / pickups combinations. Think of having the rock/jazz toggle switch set in the rock setting.

As with the standard version, Unobtanium Raw features a passive effects look to give you the option to connect your beloved pedals between your booster/overdrive and amp in a box or use the two sections as separate and independent effects when using an external bypass switcher/looper.

Note that all pedals inserted in the passive effects loop are still in the signal chain when any or both sections of are in bypass mode.

Unobtanium Raw features a power-up bypass/engage pre-set function for the footswitches. That way you can select which state your pedal will go to when you plug the power supply. This function comes in especially handy to people that use remote pedal switchers/loopers as they only set the state of the pedal once and then operate from the controller.

MAIN SONIC DIFFERENCES BETWEEN STANDARD AND RAW VERSIONS:

K-side:

Standard version: MOD setting = silicon diodes added in combination with the stock germanium diodes in the clipping section for higher output / less compression.

Raw version: OC45 setting = New Old Stock Mullard/Valvo OC45 germanium transistors used instead of stock germanium diodes for clipping resulting in higher gain and sustain/ compression.

D-side:

Standard version: Smoother jazz/blues oriented tones.

Raw version: Glassier blues rock oriented tones.

The RAW version will not replace the standard one, that will continue to thrive. It will be built in limited quantities and stay out there for as long as we have stock of the beautiful NOS Mullard/Valvo OC45.

Warning: This unit was designed for 9V DC input only. Do not use a higher voltage power supply.

Availability: ships in 3-4 weeks. €339.00

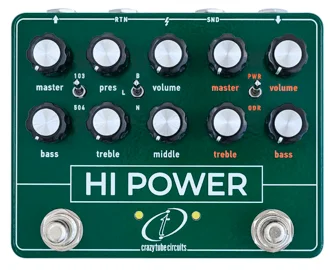

Crazy Tube Circuits announced HI Power, our next endeavour in pedal + amp-in-a-box overdrive inspired by the sonic combination of two British tone machines that helped shape the sound of Pink Floyd’s Wish You Were Here album.

On the right side of the pedal, you will find a recreation of the Colorsound Power Boost featuring the true-to-the original spec BC184 transistors running on the 18V DC (via an internal voltage booster circuit) and the ultra-flexible 2-band Baxandall EQ circuit. We’ve aded extra features, like a bypassable master volume control, a reverse-log gain control to ensure better sweep and transition from clean to mean (compared to the original’s linear taper) and a toggle switch the engage the latter higher gain / lower headroom version of the original boost circuit called Overdriver.

On the left side of the HI POWER you will find an all-analog circuit set out to emulate the sound and feel of a Hiwatt app. Following the path of the famed British tube amplifier our circuit offers authentic amp tone and feel. From the big bold high-headroom clean sounds to the face-melting crunchy tones.

True to the last detail we have included the full EQ section along with a presence control located at the negative feedback of the power amp simulation circuit. A headroom toggle switch selects between the high headroom 100w power section provided by a quartet of EL34s or the lower headroom and compression provided by a 50W power section with a pair of EL34’s when hit hard. Similar in operation to the original amp design the master volume control was designed to produce more gain at higher settings.

We’ve taken our design a step further by adding a switch to select between input channels. You can select between the full frequency response of the normal channel of the amplifier, the increased presence and tight low end of the bright channel input or the enhanced frequency response and added gain of those inputs linked together.

Like our other dual overdrive/amp-in-a-box designs we have also included a passive effects loop to give you the option to connect your beloved pedals between your booster/overdrive and amp in a box or use two two sections as separate and independent effects when using an external bypass switcher/looper.

HI POWER also features a power-up bypass/engage pre-set function for the onboard footswitches. That way you can select which state your pedal will go to when you plug the power supply. This function comes in especially handy to people that use remote pedal switchers / loopers as they only set the power-up state of the pedal once and then operate from the controller.

WARNING: This unit was designed for 9V DC input only. Do not use a higher voltage power supply.

Price: €279.00

Availability: in stock (ships in 2-3 business days)

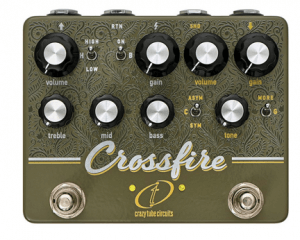

Crazy Tube Circuits announced the Crossfire pedal. Crossfire is inspired by one of the most iconic pedal – amp combinations in guitar history.

The left side is voiced after the blackface amps that defined clean electric guitar sounds. Following the circuit path to the exact detail Crazy Tube Circuits managed to include all the essential sonic ingredients. From the big bold lows, sparkly highs, and slightly scooped miss, to the powerful sound of a solid state rectified 4x 6L6GC power amp or the sponginess of a tube rectified 2x 6L6GC power amp selectable through the headroom switch.

Match that to the green mid-hump overdrive we’ve all grown to love upon its inception in the late 70s, found on the right side. Crazy Tube Circuits chose to accurately recreate the circuit of this classic overdrive but with the addition of some of the most common modifications the pedal has seen throughout the years of its mass production or boutique variations.

A clipping toggle switch selects between symmetrical (original) or asymmetrical clipping for enhanced touch-sensitive drive characteristics while a gain toggle adds more gain and alters the low frequency response making it reminiscent of placing two of the same overdrive pedals in series. An internal switch offers additional headroom by providing 18V DC to the overdrive circuit.

WARNING: This unit was designed for 9V DC input only. Do not use a higher voltage power supply.

A passive effects loop gives you the option to connect your beloved pedals in the signal chain building your ideal rig or use the two sides independently (send is the output of the overdrive side, return is the input of the amp side). When both sides are in bypass mode the loop is true bypass as well, so your signal won’t be affected at all.
