Lead guitarist and founding member of The Meters, Leo cooked up sizzling New Orleans-infused licks that redefined the NOLA sound and influenced artists of all genres around the world. He used the iconic Cry Baby Wah to sling slick, syrupy grooves on classics such as “I Just Kissed My Baby”.

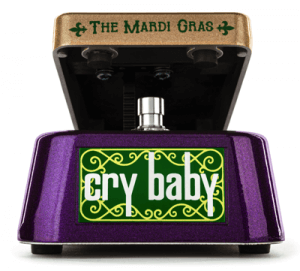

Dressed in deep purple, flashy gold, and cash-money green with a custom fleur-de-lis tread, the Cry Baby Mardi Gras Wah comes to you straight from the Meter Man himself by way of Bourbon Street. With a lowered frequency range, it serves up the warm vocalic wah tones that Leo has conjured up his entire career. Now, you can work up some of that magic on your own – just make sure you got a gang of funk in your fingers and a whole lot of soul in your good foot.
Power: The Cry Baby Leo Nocentelli is powered by one 9-volt battery (accessible via the bottom of the pedal), the Dunlop ECB003 9-volt adapter, or a Brick Series power supply.
Operation:
1 Run an instrument cable from your guitar to the LN95’s INSTRUMENT back and another instrument cable from the LN95’s AMPLIFIER jack into your amplifier’s input.
2 Push the toe of the pedal down until you feel a “click” to turn the pedal on/off.
3 Rock your foot back and forth on the pedal to hear the vocal, expressive tones that the Cry Baby Wah is famous for.
Specifications:
Input Impedance: 800 kΩ
Output Impedance: 10 kΩ
Center Frequency:
Heel Down: 290 Hz to 310 Hz
Toe Down: 1.4 kHz to 1.5 kHz
More:
Max Input Level: 8 dBV
Max Gain: 16.5 dB
Bypass: Hardwire
Current Draw: 900 μA
Power Supply: 9 volts DC
